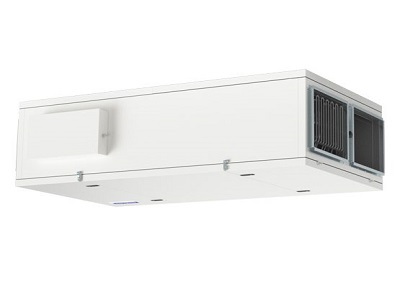

STRUCTURAL FEATURES
Structure and Panel: Self Supporting Frame and Double Wall Panels
Sheet Material: Galvanized steel
Panel Thickness: 50 mm
Heat and Sound Insulation: Rock Wool
Heating / Cooling Coil: Copper Tube Aluminum Fin
Fan : EC Motor Fan
Heat Recovery: Rotary Heat Recovery
User Panel: C5.1 Programmable Touch-Screen Display
Automation Panel: Built-in Power and Electricity Regulation Panel
Monitoring - Management: with BMS Management
Maximum Air Flow, m³/h: 3800
Unit weight, kg: 130
Unit dimensions DxHxU, mm: 1015x555x1160
Filter dimensionsDxHxU,, mm: 450x480x4-96
Supply Voltage, V: 400
Maximum operating current, A: 3.8
Maintenance clearance, mm: 600
Sound Level, dB(A): 42
